Quantitative risk evaluation of agricultural drought in China using the improved catastrophe progression method

doi:10.1016/j.regsus.2026.100387

Abstract

Abstract:

The identification of factors contributing to agricultural drought and regions with high drought risk is important to reduce grain losses and ensure food security. However, agricultural drought is a complex phenomenon and governed by factors such as soil, crop, atmosphere, and human activity. Due to the complexity and uncertainty, there is currently a lack of effective quantitative risk assessment method that can reflect the process of risk formation. In this study, the hazard-exposure-vulnerability-resilience framework was applied to establish the risk evaluation index system of agricultural drought. This study used the improved catastrophe progression method (CPM) to diagnose and evaluate the agricultural drought risks in 31 provinces, municipalities, and autonomous regions of China during 2001-2020 based on the index data from China Statistical Yearbook and China Water Resources Bulletin. Results showed that 41.94% of provinces, municipalities, and autonomous regions had a risk above the national average, among which Henan Province had the highest agricultural drought risk. Moreover, there were distinct spatial characteristics in which risk decreased from western and central China (high risk) to northeastern and eastern China (low risk), and the top five high risk regions (Henan Province, Xinjiang Uygur Autonomous Region, Ningxia Hui Autonomous Region, Shandong Province, and Hebei Province) are all located north of the Yangtze River. At the criterion layer, the regional distribution characteristics of risks also exhibited significant variations. In summary, the approach is effective and can be applied to evaluate regional natural disaster risk. The results can facilitate the development of policies for regional agricultural drought prevention and mitigation.

Key words: Agricultural drought risk, Hazard-exposure-vulnerability-resilience framework, Catastrophe progression method (CPM), Comprehensive weighted scoring method (CWSM), Risk evaluation index system China

DU Xiaoyan, FANG Di, WANG Chengqin, TANG Gang, WANG Qian, HAN Dongjun. Quantitative risk evaluation of agricultural drought in China using the improved catastrophe progression method[J]. Regional Sustainability, 2026, 7(5): 100387.

Figures/Tables 12

Table 1

Fig. 1.

Table 2

Fig. 2.

Table 3

Fig. 3.

Fig. 4.

Table 4

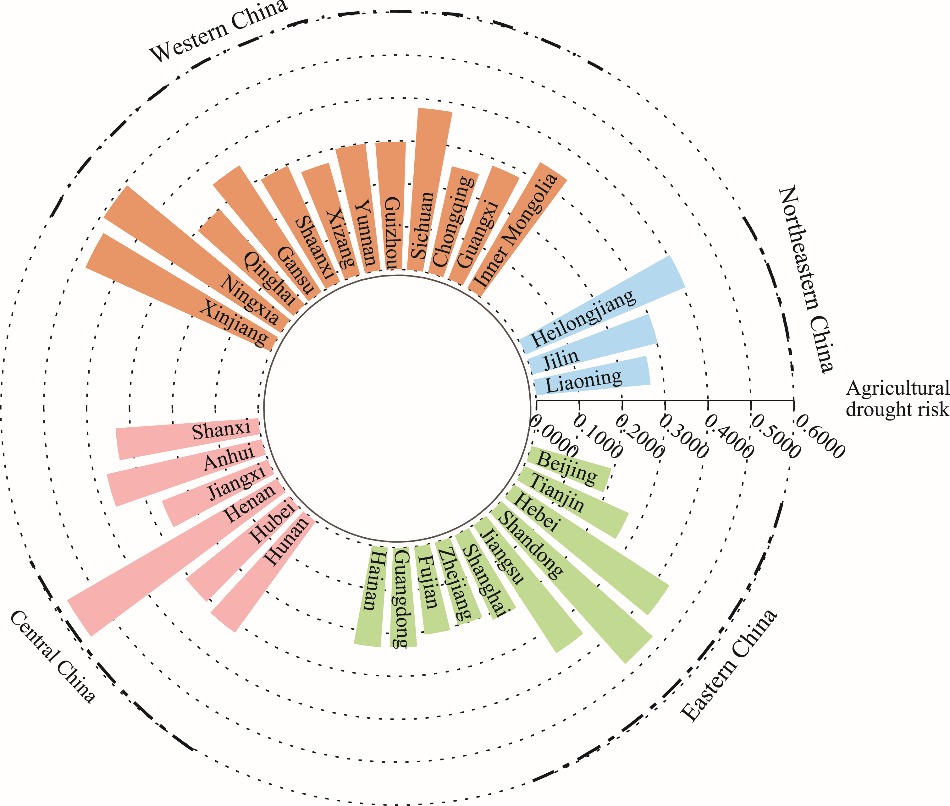

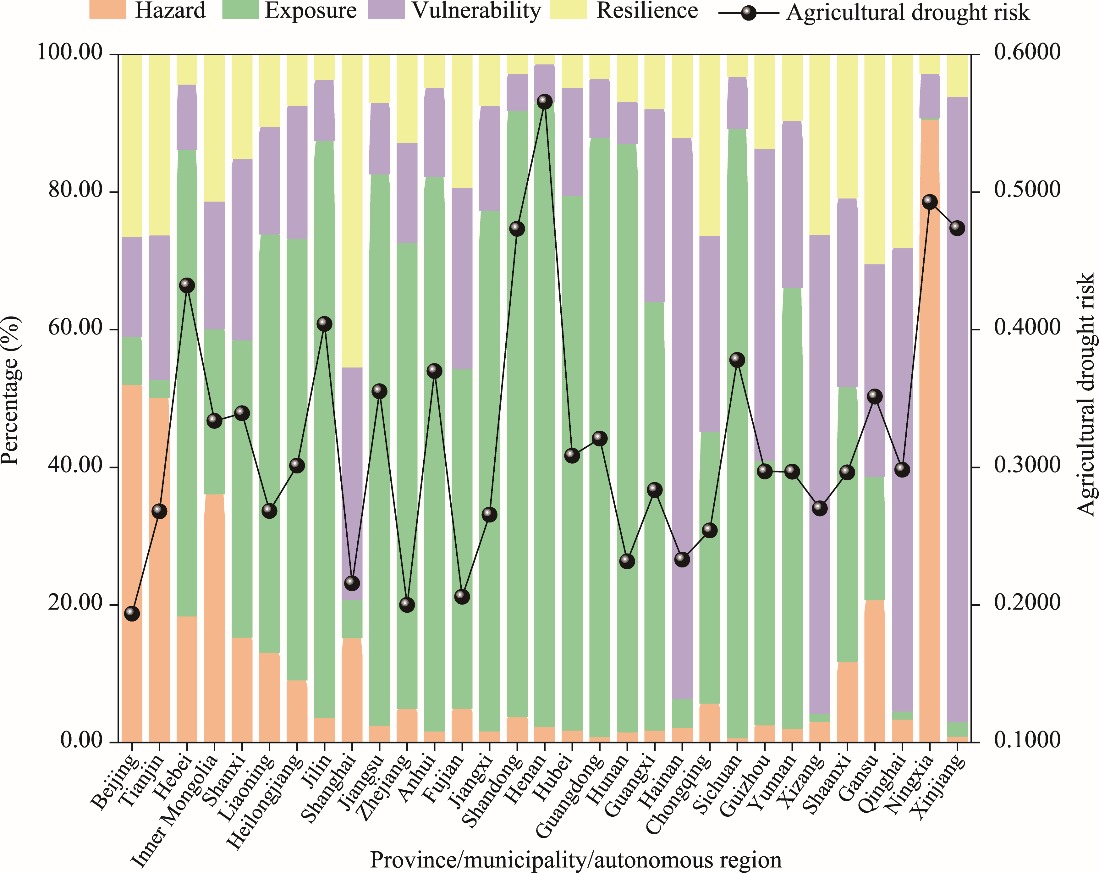

Agricultural drought risk values in 31 provinces, municipalities, and autonomous regions of China."

Province, municipality, or autonomous region	R'_B₁	R'_B₂	R'_B₃	R'_B₄	R′	Province, municipality, or autonomous region	R'_B₁	R'_B₂	R'_B₃	R'_B₄	R′
Beijing Municipality	0.4970	0.2940	0.3690	0.4271	0.1936	Hubei Province	0.3958	0.7734	0.6119	0.4892	0.3084
Tianjin Municipality	0.6185	0.3213	0.5306	0.5527	0.2680	Hunan Province	0.3611	0.8203	0.5853	0.4955	0.3209
Hebei Province	0.7113	0.8430	0.6437	0.5633	0.4321	Guangdong Province	0.3014	0.7050	0.4372	0.4500	0.2317
Shanxi Province	0.6600	0.6183	0.5927	0.6061	0.3337	Guangxi Zhuang Autonomous Region	0.3510	0.7073	0.6269	0.4981	0.2836
Inner Mongolia Autonomous Region	0.5864	0.6913	0.6412	0.5849	0.3393	Hainan Province	0.3025	0.3645	0.6647	0.4708	0.2329
Liaoning Province	0.5038	0.6586	0.5215	0.4797	0.2683	Chongqing Municipality	0.3934	0.5875	0.5544	0.5465	0.2541
Jilin Province	0.5146	0.7117	0.5908	0.4920	0.3012	Sichuan Province	0.3935	0.8773	0.6276	0.5416	0.3780
Heilongjiang Province	0.5521	0.8686	0.6413	0.5491	0.4042	Guizhou Province	0.3873	0.6579	0.6751	0.5528	0.2970
Shanghai Municipality	0.4148	0.3087	0.4938	0.5235	0.2156	Yunnan Province	0.3776	0.7226	0.6245	0.5297	0.2968
Jiangsu Province	0.4695	0.8179	0.6109	0.5707	0.3553	Xizang Autonomous Region	0.3824	0.2800	0.6953	0.5960	0.2701
Zhejiang Province	0.3218	0.5828	0.4277	0.4120	0.2000	Shaanxi Province	0.5116	0.6351	0.5973	0.5693	0.2963
Anhui Province	0.4487	0.8386	0.6539	0.5518	0.3700	Gansu Province	0.6212	0.6060	0.6615	0.6596	0.3514
Fujian Province	0.3114	0.5418	0.4788	0.4461	0.2059	Qinghai Province	0.4280	0.3191	0.7283	0.6398	0.2983
Jiangxi Province	0.3340	0.7168	0.5545	0.4813	0.2656	Ningxia Hui Autonomous Region	0.9989	0.3897	0.7233	0.6380	0.4928
Shandong Province	0.6123	0.9302	0.6464	0.5773	0.4733	Xinjiang Uygur Autonomous Region	0.5307	0.6096	0.9998	0.7175	0.4737
Henan Province	0.6232	1.0000	0.7078	0.5637	0.5657

Table 4

Fig. 5.

Fig. 6.

Fig. 7.

Fig. 8.

References 51

[1]	Araneda-Cabrera R.J., Bermúdez M., Puertas J., 2021. Assessment of the performance of drought indices for explaining crop yield variability at the national scale: methodological framework and application to Mozambique. Agricultural Water Management. 246, 106692, doi: 10.1016/j.agwat.2020.106692.
[2]	Babel M.S., Chawrua L., Khadka D., et al., 2024. Agricultural drought risk and local adaptation measures in the Upper Mun River Basin, Thailand. Agricultural Water Management. 292, 108655, doi: 10.1016/j.agwat.2023.108655.
[3]	Bachmair S., Svensson C., Hannaford J., et al., 2016. A quantitative analysis to objectively appraise drought indicators and model drought impacts. Hydrology and Earth System Sciences. 20(7), 2589-2609. doi: 10.5194/hess-20-2589-2016
[4]	Chen H.Y., Zhang Y.S., Liu H., et al., 2018. Cause analysis and safety evaluation of aluminum powder explosion on the basis of catastrophe theory. Journal of Loss Prevention in the Process Industries. 55, 19-24.
[5]	Chen L.Y., Gao X., Gong S.T., et al., 2020. Regionalization of green building development in China: a comprehensive evaluation model based on the catastrophe progression method. Sustainability. 12(15), 5988, doi: 10.3390/su12155988.
[6]	Chen T., Jin Y.Y., Qiu X.P., et al., 2014. A hybrid fuzzy evaluation method for safety assessment of food-waste feed based on entropy and the analytic hierarchy process methods. Expert Systems with Applications. 41(16), 7328-7337. doi: 10.1016/j.eswa.2014.06.006
[7]	Dabanli I., 2018. Drought hazard, vulnerability, and risk assessment in turkey. Arabian Journal of Geoscience. 11(18), 538, doi: 10.1007/s12517-018-3867-x.
[8]	Dahal P., Shrestha N.S., Shrestha M.L., et al., 2016. Drought risk assessment in central Nepal: temporal and spatial analysis. Nature Hazards. 80(3), 1913-1932. doi: 10.1007/s11069-015-2055-5
[9]	Dai M., Huang S.Z., Huang Q., et al., 2020. Assessing agricultural drought risk and its dynamic evolution characteristics. Agricultural Water Management. 231, 106003, doi: 10.1016/j.agwat.2020.106003.
[10]	Ding Y.J., Zhang L.F., He Y., et al., 2024. Nonlinear effects of agricultural drought on vegetation productivity in the Yellow River Basin, China. Science of The Total Environment. 948, 174903, doi: 10.1016/j.scitotenv.2024.174903.
[11]	Ellahi A., Almanjahie I.M., Hussain T., et al., 2020. Analysis of agricultural and hydrological drought periods by using non-homogeneous Poisson models: linear intensity function. Journal of Atmospheric and Solar-Terrestrial Physics. 198, 105190, doi: 10.1016/j.jastp.2020.105190.
[12]	Elusma M., Tung C.P., Lee C.C., 2022. Agricultural drought risk assessment in the Caribbean region: The case of Haiti. International Journal of Disaster Risk Reduction. 83, 103414, doi: 10.1016/j.ijdrr.2022.103414.
[13]	Ganjir G., Reddy M.J., Karmakar S., 2025. Assessing agricultural drought hazard, vulnerability and risk over India. International Journal of Disaster Risk Reduction. 130, 105830, doi: 10.1016/j.ijdrr.2025.105830.
[14]	Gao S., Sun H.H., Zhao L., et al., 2019. Dynamic assessment of island ecological environment sustainability under urbanization based on rough set, synthetic index and catastrophe progression analysis theories. Ocean & Coastal Management. 178, 104790, doi: 10.1016/j.ocecoaman.2019.04.017.
[15]	García-León D., Standardi G., Staccione A., 2021. An integrated approach for the estimation of agricultural drought costs. Land Use Policy. 100, 104923, doi: 10.1016/j.landusepol.2020.104923.
[16]	Guo H., Wang R., Garfin G.M., et al., 2021. Rice drought risk assessment under climate change: based on physical vulnerability a quantitative assessment method. Science of The Total Environment. 751, 141481, doi: 10.1016/j.scitotenv.2020.141481.
[17]	Guo Y.X., Sun Z.X., Bai W., et al., 2024. Drought risk assessment for maize/peanut intercropping based on crop model and SPEI. Agricultural Systems. 221, 104144, doi: 10.1016/j.agsy.2024.104144.
[18]	Hao Z.C., Hong Y., Xia Y.L., et al., 2016. Probabilistic drought characterization in the categorical form using ordinal regression. Journal of Hydrology. 535, 331-339.
[19]	Hoque M.A., Pradhan B., Ahmed N., et al., 2021. Agricultural drought risk assessment of northern new south Wales, Australia using geospatial techniques. Science of The Total Environment. 756, 143600, doi: 10.1016/j.scitotenv.2020.143600.
[20]	Hoveidafard A., Moradinia S.F., Golchin B., et al., 2025. Identification of required stations for autonomous vehicles using AHP and TOPSIS Method with GIS Approach. Sustainable Futures. 10, 100755, doi: 10.1016/j.sftr.2025.100755.
[21]	Ji Y.L., Lu X.L., Zhang X.W., et al., 2025. Spatiotemporal dynamics and agricultural impacts of droughts and floods in China: a systematic review. Natural Hazard. 121, 20729-20758.
[22]	Khan M.S.A., 2008. Disaster preparedness for sustainable development in Bangladesh. Disaster Prevention & Management. 17(5), 662-671.
[23]	Li D.Z., Xu B.K., Chang C., 2016. Entropy-based comprehensive evaluation for the operating conditions of large-scale wind turbine. Journal of Engineering for Thermal Energy and Power. 31(4), 1-5 (in Chinese).
[24]	Li G.Y., Liu J.H., Shao W.W., 2023. Urban flood risk assessment under rapid urbanization in Zhengzhou City, China. Regional Sustainability. 4(3), 332-348. doi: 10.1016/j.regsus.2023.08.004
[25]	Liu C., Yang S.W., Cui Y., et al., 2020. An improved risk assessment method based on a comprehensive weighting algorithm in railway signaling safety analysis. Safety Science. 128, 104768, doi: 10.1016/j.ssci.2020.104768.
[26]	Liu Q.L., Shang J.P., Wang J.Z., et al., 2023. Evaluation and prediction of the safety management efficiency of coal enterprises based on a DEA-BP neural network. Resources Policy. 83, 103611, doi: 10.1016/j.resourpol.2023.103611.
[27]	Liu X.P., Zhang J.Q., Cai W.Y., et al., 2013. Assessing maize drought hazard for agricultural areas based on the fuzzy gamma model. Journal of Integrative Agriculture. 12(3), 532-540. doi: 10.1016/S2095-3119(13)60254-3
[28]	Liu Y.Q., You M., Zhu J.L., et al., 2019. Integrated risk assessment for agricultural drought and flood disasters based on entropy information diffusion theory in the middle and lower reaches of the Yangtze River, China. International Journal of Disaster Risk Reduction. 38, 101194, doi: 10.1016/j.ijdrr.2019.101194.
[29]	Lummen N.S., Yamada F., 2014. Implementation of an integrated vulnerability and risk assessment model. Natural Hazards. 73(2), 1085-1117. doi: 10.1007/s11069-014-1123-6
[30]	Luo D., Ye L.L., Sun D.C., 2020. Risk evaluation of agricultural drought disaster using a grey cloud clustering model in Henan Province, China. International Journal of Disaster Risk Reduction. 49, 101759, doi: 10.1016/j.ijdrr.2020.101759.
[31]	Ministry of Water Resources of the People’s Republic of China, 2002-2021. China Water Resources Bulletin (2001-2020). Beijing: China Water & Power Press (in Chinese).
[32]	Moridi M., Rahimian M., Ghanbari Movahed R., et al., 2025. Policy insights for drought adaptation: Farmers’ behavior and sustainable agricultural development. Environmental and Sustainability Indicators. 26, 100603, doi: 10.1016/j.indic.2025.100603.
[33]	National Bureau of Statistics of China, 2002-2021. China Statistical Yearbook (2001-2020). Beijing: China Statistics Press (in Chinese).
[34]	National Bureau of Statistics of China, 2011. Division Method of Eastern, Central, Western and Northeast China. Beijing: National Bureau of Statistics of China (in Chinese).
[35]	Niu B., Li Y., Liu D.L., et al., 2024. Improved identification and monitoring of meteorological, agricultural, and hydrological droughts using the modified nonstationary drought indices in the Yellow River Basin of China. Journal of Hydrology. 643, 131788, doi: 10.1016/j.jhydrol.2024.131788.
[36]	Parsons D.J., Rey D., Tanguy M., et al., 2019. Regional variations in the link between drought indices and reported agricultural impacts of drought. Agricultural Systems. 173, 119-129.
[37]	Raoufi H., Jafari H., Sarhadi W.A., et al., 2024. Assessing the impact of climate change on agricultural production in central Afghanistan. Regional Sustainability. 5(3), 100156, doi: 10.1016/j.regsus.2024.100156.
[38]	Saha A., Chandra Pal S., 2024. Spatio-temporal variation of meteorological, hydrological and agricultural drought vulnerability: Insights from statistical, machine learning and wavelet analysis. Groundwater for Sustainable Development. 27, 101380, doi: 10.1016/j.gsd.2024.101380.
[39]	Salvia A.L., Brandli L.L., Leal Filho W., et al., 2019. An analysis of the applications of analytic hierarchy process (AHP) for selection of energy efficiency practices in public lighting in a sample of Brazilian cities. Energy Policy. 132, 854-864.
[40]	Savari M., Eskandari Damaneh H., Eskandari Damaneh H., 2024. Managing the effects of drought through the use of risk reduction strategy in the agricultural sector of Iran. Climate Risk Management. 45, 100619, doi: 10.1016/j.crm.2024.100619.
[41]	Urban J., Rubtsov A.V., Urban A., et al., 2019. Canopy transpiration of a larix sibirica and pinus sylvestris forest in Central Siberia. Agricultural and Forest Meteorology. 271, 64-72.
[42]	Wang M.X., Qu Y.P., Wang X.W., et al., 2025. Assessment of agricultural drought disaster risk in Southwest China using fuzzy logic-based geospatial techniques. Agricultural Water Management. 319, 109785, doi: 10.1016/j.agwat.2025.109785.
[43]	Wei Y.Q., Jin J.L., Cui Y., et al., 2021. Quantitative assessment of soybean drought risk in Bengbu City based on disaster loss risk curve and DSSAT. International Journal of Disaster Reduction. 56, 102126, doi: 10.1016/j.ijdrr.2021.102126.
[44]	Wu S.S., Fu Y.L., Shen H., et al., 2018. Using ranked weights and Shannon entropy to modify regional sustainable society index. Sustainable Cities and Society. 41, 443-448.
[45]	Xing W.B., Wang H.P., Fan J.G., et al., 2024. Rockburst risk assessment model based on improved catastrophe progression method and its application. Stochastic Environmental Research and Risk Assessment. 38(3), 981-992. doi: 10.1007/s00477-023-02609-8
[46]	Xiong F., Li P.H., Yuan Y.M., et al., 2023. Urban flood disaster risk assessment based on GIS and combined weights. Yangtze River. 54(8), 60-66 (in Chinese).
[47]	Zarei A.R., 2018. Evaluation of drought condition in arid and semi- arid regions, using RDI index. Water Resource Management. 32(5), 1689-1711. doi: 10.1007/s11269-017-1898-9
[48]	Zeng Z.Q., Wu W.X., Li Z.L., et al., 2019. Agricultural drought risk assessment in southwest China. Water. 11(5), 1064, doi: 10.3390/w11051064.
[49]	Zhang S.H., Wang L., Li B., et al., 2024. Comprehensive evaluation method based on objective and subjective factors: a case of printed circuit board resin waste treatment technologies in China. Resources, Conservation and Recycling. 209, 107767, doi: 10.1016/j.resconrec.2024.107767.
[50]	Zhang W.W., Xu X.H., Chen X.H., 2017. Social vulnerability assessment of earthquake disaster based on the catastrophe progression method: A Sichuan Province case study. International Journal of Disaster Risk Reduction. 24, 361-372.
[51]	Zhao J.O., Zhang Q., Zhu X.D., et al., 2020. Drought risk assessment in China: evaluation framework and influencing factors. Geography and Sustainability. 1(3), 220-228. doi: 10.1016/j.geosus.2020.06.005

Criterion	Index	Description	Unit	Index attribute	Data source
Hazard (B₁)	C₁	Average annual precipitation	mm	Negative	Ministry of Water Resources of the People’s Republic of China (2002-2021)
Hazard (B₁)	C₂	Water resources per unit of cultivated land	m³/hm²	Negative	National Bureau of Statistics of China (2002-2021)
Exposure (B₂)	C₃	Average annual planting area	hm²	Positive
	C₄	Average annual crop (grain, legumes, and root crops) yield	t	Positive
	C₅	Average annual rural population density	persons/hm²	Positive
Vulnerability (B₃)	C₆	Average annual proportion of agricultural production value in the total regional production value	%	Positive
Vulnerability (B₃)	C₇	Average annual proportion of the agricultural population to the total population	%	Positive
Resilience (B₄)	C₈	Average annual forest coverage rate	%	Negative
	C₉	Average annual of the per capita disposable income of rural residents	CNY/capita	Negative
	C₁₀	Average annual ratio of the total reservoir capacity to the total cultivated area	m³/hm²	Negative

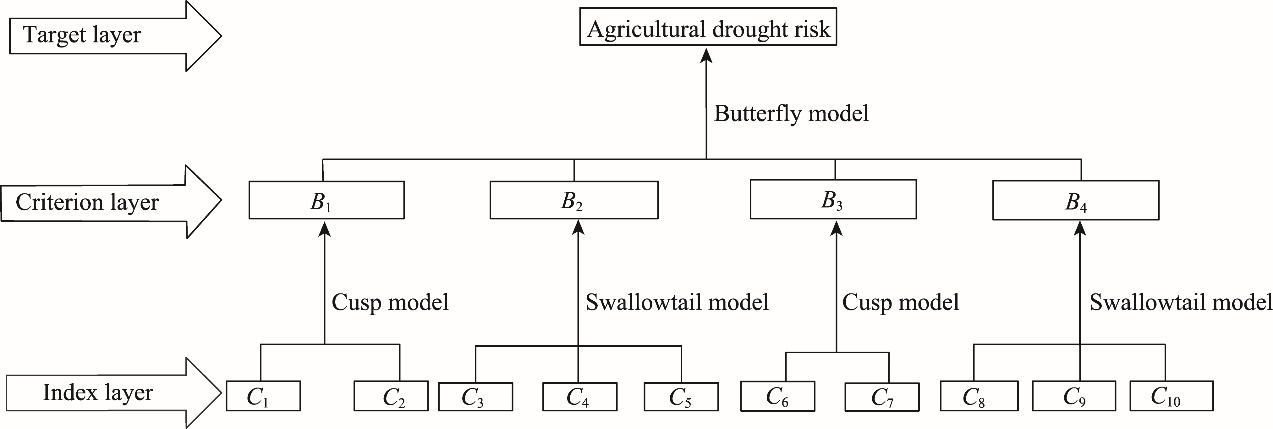

Catastrophe model	Dimension of control variable	Potential function	Normalized formula
Fold model	1	$f(x)={x}^{3}+{u}_{1}x$	${x}_{{u}_{1}}$=u₁^1/2
Cusp model	2	$f(x)={x}^{4}+{u}_{1}{x}^{2}+{u}_{2}x$	${x}_{{u}_{1}}$=u₁^1/2 and${x}_{{u}_{1}}$=u₂^12/3
Swallowtail model	3	$f(x)={x}^{5}+{u}_{1}{x}^{3}+{u}_{2}{x}^{2}+{u}_{3}x$	${x}_{{u}_{1}}$=u₁^1/2, ${x}_{{u}_{1}}$=u₂^1/3, and ${x}_{{u}_{1}}$=u₃^123/4
Butterfly model	4	$f(x)={x}^{6}+{u}_{1}{x}^{4}+{u}_{2}{x}^{3}+{u}_{3}{x}^{2}+{u}_{4}x$	${x}_{{u}_{1}}$=u₁^1/2, ${x}_{{u}_{1}}$=u₂^1/3, ${x}_{{u}_{1}}$=u₃^1/4, and ${x}_{{u}_{1}}$=u₄^1234/5

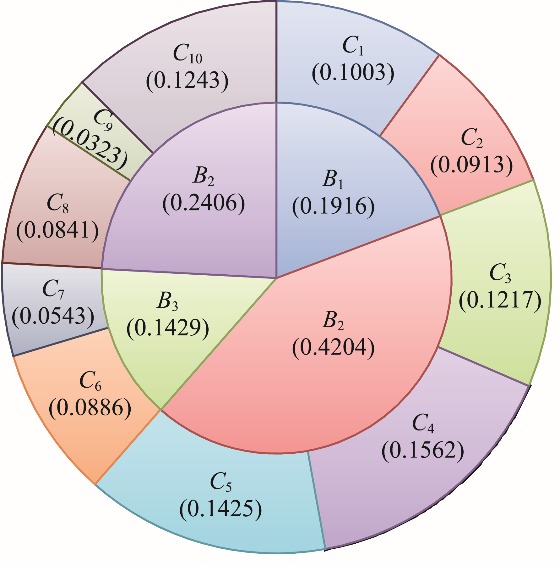

Criterion layer	Objective weight	Subjective weight	Index layer	Objective weight	Subjective weight
B₁	0.0943	0.3084	C₁	0.0703	0.1363
B₁	0.0943	0.3084	C₂	0.0240	0.1721
B₂	0.5661	0.2455	C₃	0.1673	0.0669
			C₄	0.2100	0.0917
			C₅	0.1888	0.0869
B₃	0.1496	0.1349	C₆	0.0910	0.0858
B₃	0.1496	0.1349	C₇	0.0586	0.0491
B₄	0.1818	0.3112	C₈	0.0847	0.0833
			C₉	0.0495	0.0116
			C₁₀	0.0476	0.2163
